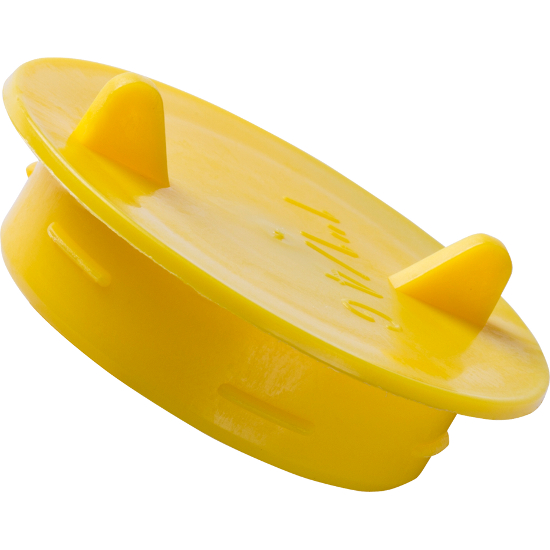

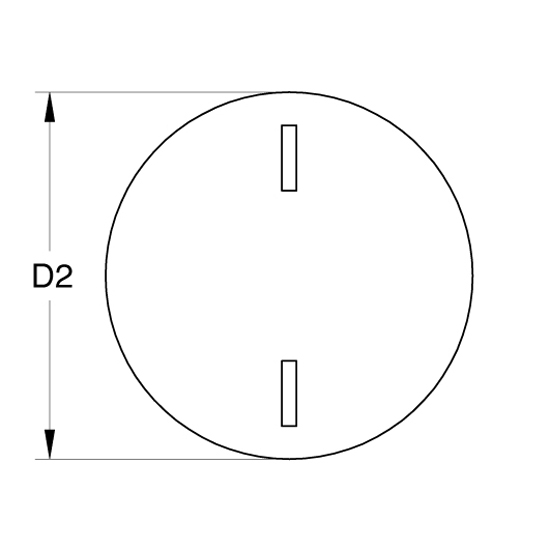

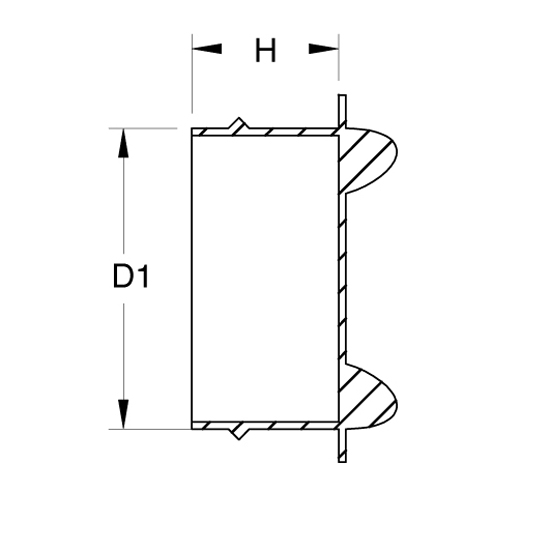

| REF. - METRIC THREAD | Thread | D1 | D2 | H |
|---|---|---|---|---|
| KAP 312 M 12 x 1-1,5 | 12 x 1-1,5 | 10,4 | 19 | 6 |
| KAP 312 M 14 x 1,5 | 14 x 1,5 | 12,4 | 21 | 6 |
| KAP 312 M 16 x 1,5 | 16 x 1,5 | 14,4 | 24 | 7 |
| KAP 312 M 18 x 1,5 | 18 x 1,5 | 16,4 | 26 | 7 |
| KAP 312 M 20 x 1,5 | 20 x 1,5 | 18,4 | 26 | 7 |
| KAP 312 M 22 x 1,5 | 22 x 1,5 | 20,4 | 29 | 7 |
| KAP 312 M 24 x 1,5 | 24 x 1,5 | 22,4 | 32 | 7 |
| KAP 312 M 26 x 1,5 | 26 x 1,5 | 24,4 | 34 | 8 |
| KAP 312 M 27 x 1,5 | 27 x 1,5 | 25,4 | 34 | 8 |
| KAP 312 M 30 x 1,5-2 | 30 x 1,5-2 | 28,0 | 38 | 8 |
| RIFERIMENTO - FIL. UNF | Filetto | D1 | D2 | H |
| KAP 312 UNF 7/16"-20 | 7/16"-20 | 9,7 | 16,0 | 6,0 |
| KAP 312 UNF 1/2" -20 | 1/2" -20 | 11,3 | 18,0 | 7,0 |
| KAP 312 UNF 9/16"-18 | 9/16"-18 | 12,8 | 19,0 | 7,0 |
| KAP 312 UNF 5/8" -18 | 5/8" -18 | 14,5 | 23,6 | 7,2 |
| KAP 312 UNF 3/4" -16 | 3/4" -16 | 17,3 | 25,0 | 8,5 |
| KAP 312 UNF 7/8" -14 | 7/8" -14 | 20,3 | 27,0 | 10,6 |
| KAP 312 UNF 1" -14 | 1" -14 | 23,5 | 32,6 | 6,5 |
| KAP 312 UNF 1" 1/16 -12 | 1" 1/16 -12 | 24,6 | 31,7 | 12,3 |
| KAP 312 UNF 1" 3/16 -12 | 1" 3/16 -12 | 27,8 | 38,0 | 13,0 |
| KAP 312 UNF 1" 5/16 -12 | 1" 5/16 -12 | 31,1 | 40,0 | 13,0 |
| RIFERIMENTO - FIL. GAS | Filetto | D1 | D2 | H |
| KAP 312 GAS 1/8 | 1/8" (28) | 8,6 | 16,0 | 6 |
| KAP 312 GAS 1/4 | 1/4" (19) | 11,5 | 21,0 | 7 |
| KAP 312 GAS 3/8 | 3/8" (19) | 15,0 | 24,0 | 8 |
| KAP 312 GAS 1/2 | 1/2" (14) | 18,7 | 27,0 | 8 |
| KAP 312 GAS 3/4 | 3/4" (14) | 24,8 | 34,0 | 8 |
| KAP 312 GAS 1" | 1" (11) | 30,4 | 40,0 | 9 |
| KAP 312 GAS 1"1/4 | 1"1/4 (11) | 38,8 | 50,0 | 11 |
| KAP 312 GAS 1"1/2 | 1"1/2 (11) | 44,4 | 56,7 | 11 |
| KAP 312 GAS 2" | 2" (11) | 56,2 | 69,6 | 11 |
