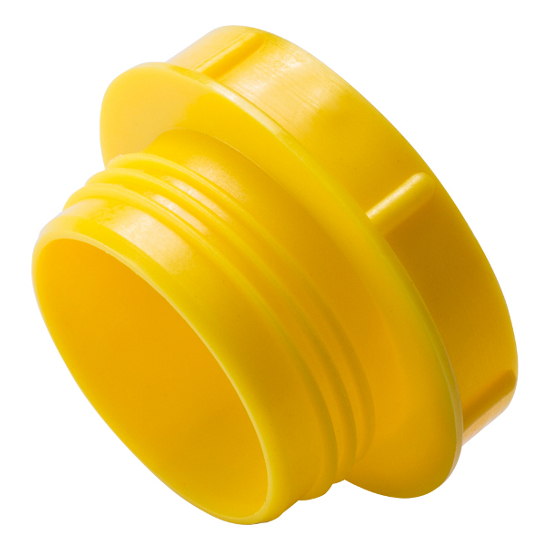

KAP 070-M

  • SCREW PLUGS FOR METRIC THREADS WITH EASY FIT PUSH-AND-TURN
  • Material: LD-PE
  • Colour: Yellow
  • Dimensions: mm.

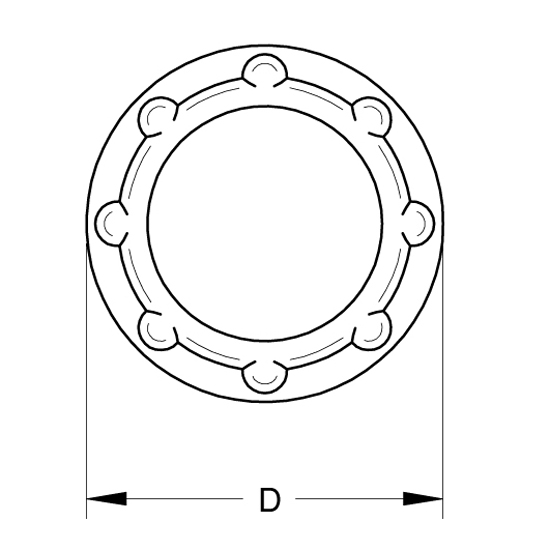

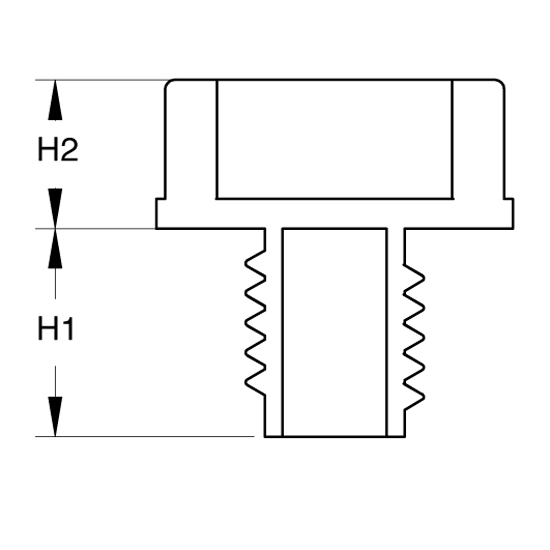

REFERENCEThreadDH1H2
KAP 070 M 8 x 1 8 x 1 17 9 10
KAP 070 M 10 x 1 10 x 1 17 9 10
KAP 070 M 12 x 1 12 x 1 19 10 6
KAP 070 M 14 x 1 14 x 1 21 9 6
KAP 070 M 16 x 1 16 x 1 24 10,5 6
KAP 070 M 18 x 1 18 x 1 26 10 7
KAP 070 M 20 x 1 20 x 1 26 12 7
KAP 070 M 22 x 1 22 x 1 29 12 7
KAP 070 M 12 x 1,25 12 x 1,25 19 10 6
KAP 070 M 10 x 1,5 10 x 1,5 17 9 10
KAP 070 M 12 x 1,5 12 x 1,5 19 10 6
KAP 070 M 14 x 1,5 14 x 1,5 21 9 6
KAP 070 M 16 x 1,5 16 x 1,5 24 10,5 6
KAP 070 M 18 x 1,5 18 x 1,5 26 10 7
KAP 070 M 20 x 1,5 20 x 1,5 26 12 7
KAP 070 M 22 x 1,5 22 x 1,5 29 12 7
KAP 070 M 24 x 1,5 24 x 1,5 32 12 7
KAP 070 M 25 x 1,5 25 x 1,5 33 12 7
KAP 070 M 26 x 1,5 26 x 1,5 34 12 7
KAP 070 M 27 x 1,5 27 x 1,5 34 13 7
KAP 070 M 28 x 1,5 28 x 1,5 35 13 7
KAP 070 M 30 x 1,5 30 x 1,5 38 14 7
KAP 070 M 33 x 1,5 33 x 1,5 42 14 7
KAP 070 M 36 x 1,5 36 x 1,5 43,5 15,2 10
KAP 070 M 39 x 1,5 39 x 1,5 46 12 10
KAP 070 M 42 x 1,5 42 x 1,5 54 15 10
KAP 070 M 45 x 1,5 45 x 1,5 60 15 10
KAP 070 M 52 x 1,5 52 x 1,5 65 15 10
KAP 070 M 14 x 2 14 x 2 21 9 6
KAP 070 M 16 x 2 16 x 2 24 10,5 6
KAP 070 M 18 x 2 18 x 2 26 10 7
KAP 070 M 20 x 2 20 x 2 26 12 7
KAP 070 M 22 x 2 22 x 2 29 12 7
KAP 070 M 24 x 2 24 x 2 32 12 7
KAP 070 M 27 x 2 27 x 2 34 13 7
KAP 070 M 30 x 2 30 x 2 38 14 7
KAP 070 M 33 x 2 33 x 2 42 14 7
KAP 070 M 36 x 2 36 x 2 43,5 15,2 10
KAP 070 M 42 x 2 42 x 2 54 15 10
KAP 070 M 45 x 2 45 x 2 60 15 10
KAP 070 M 48 x 2 48 x 2 60 15 10
KAP 070 M 52 x 2 52 x 2 65 15 10
KAP 070 M 8 8 x 1,25 17 9 10
KAP 070 M 10 10 x 1,5 17 9 10
KAP 070 M 12 12 x 1,75 19 10 6
KAP 070 M 14 14 x 2 21 9 6
KAP 070 M 16 16 x 2 24 10,5 6
KAP 070 M 18 18 x 2,5 26 10 7
KAP 070 M 20 20 x 2,5 26 12 7
KAP 070 M 22 22 x 2,5 29 12 7
KAP 070 M 24 24 x 3 32 12 7
