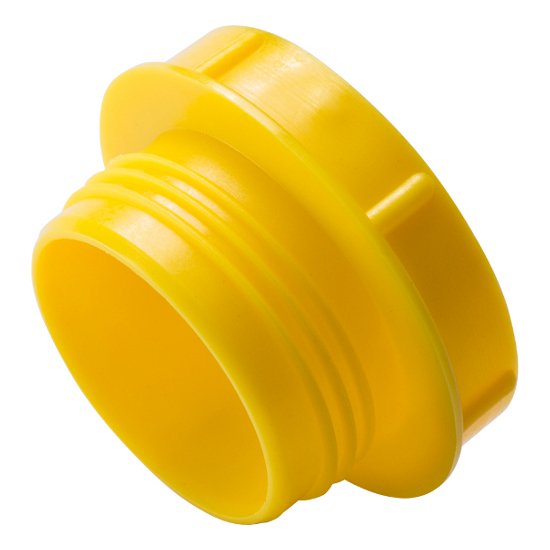

- SCREW PLUGS FOR UNF THREADS WITH EASY FIT PUSH-AND-TURN
- Material:
LD-PE
- Colour:
Yellow
- Dimensions:
mm.

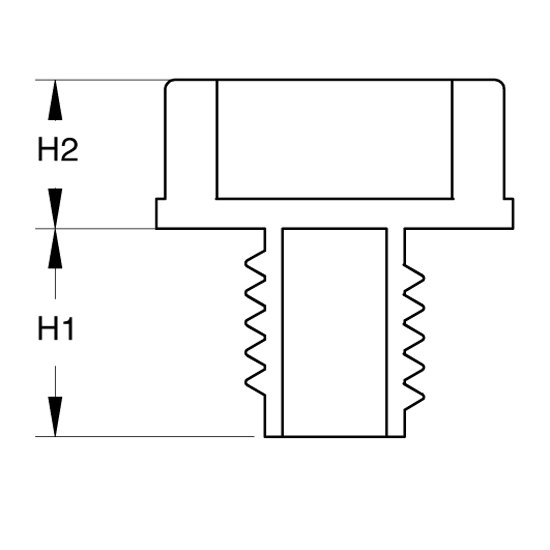

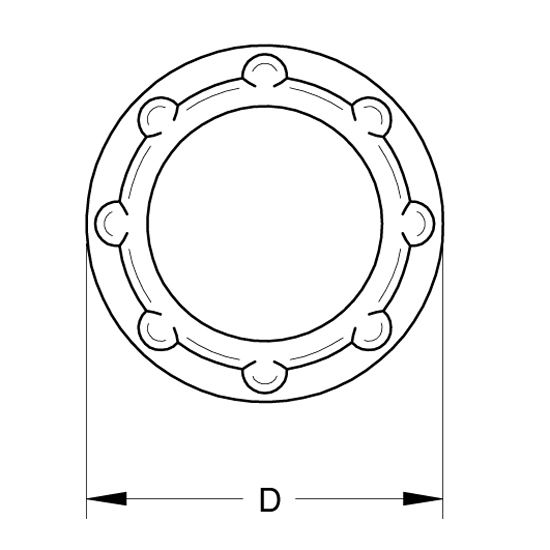

| REFERENCE | Thread | D | H1 | H2 |
|---|
| KAP 070 3/8"-24 UNF |
3/8" -24 |
17 |
10 |
10 |
| KAP 070 7/16"-20 UNF |
7/16"-20 |
16 |
9,5 |
6 |
| KAP 070 1/2"-20 UNF |
1/2" -20 |
18 |
10 |
6 |
| KAP 070 9/16"-18 UNF |
9/16"-18 |
19 |
10 |
6 |
| KAP 070 5/8"-18 UNF |
5/8" -18 |
23 |
11 |
6 |
| KAP 070 5/8"-18 UNF LE |
5/8" -18 |
|
|
|
| KAP 070 5/8"-18 UNF LM |
5/8" -18 |
|
|
|
| KAP 070 11/16"-16 UNF |
11/16"-16 |
24 |
11 |
6 |
| KAP 070 3/4"-16 UNF |
3/4" -16 |
26 |
11 |
7 |
| KAP 070 3/4"-16 UNF M |
3/4" -16 |
|
|
|
| KAP 070 3/4"-16 UNF A |
3/4" -16 |
|
|
|
| KAP 070 13/16"-16 UNF |
13/16"-16 |
26 |
11 |
6 |
| KAP 070 7/8"-14 UNF |
7/8" -14 |
27 |
13 |
7 |
| KAP 070 1" -14 UNF |
1" -14 |
33 |
14 |
7 |
| KAP 070 1" 1/16 -12 UNF |
1" 1/16 -12 |
34 |
14 |
7 |
| KAP 070 1" 3/16 -12 UNF |
1" 3/16 -12 |
38 |
14,5 |
7 |
| KAP 070 1" 5/16 -12 UNF |
1" 5/16 -12 |
40 |
15,5 |
7 |
| KAP 070 1" 7/16 -12 UNF |
1" 7/16 -12 |
40 |
15,5 |
7 |
| KAP 070 1" 5/8 -12 UNF |
1" 5/8 -12 |
52 |
15,5 |
10 |
| KAP 070 1" 5/8 -16 UNF |
1" 5/8 -16 |
52 |
15,5 |
10 |
| KAP 070 1"11/16 -12 UNF |
1"11/16 -12 |
57 |
15 |
10 |
| KAP 070 1" 7/8 -12 UNF |
1" 7/8 -12 |
57 |
15 |
12 |
| KAP 070 2" -12 UNF |
2" -12 |
57 |
15 |
12 |
| KAP 070 2" 1/4 -12 UNF |
2" 1/4 -12 |
65 |
15 |
12 |
| KAP 070 2" 1/2 -12 UNF |
2" 1/2 -12 |
73 |
15 |
12 |
